Model

ENS500EXT-AC

Standards

IEEE802.11a/n/ac on 5 GHz

Antennas

2 x 5 dBi Omni-Directional Detachable (SMA-Type)

Physical Interface

2 x 10/100/1000 Gigabit Ethernet Ports (Link Aggregation achieves 2 Gbps Throughput)

Reset Button

Power Source

Power-over-Ethernet: Proprietary 24V PoE IEEE 802.11e Compliant Source

Active Ethernet (PoE)

LED Indicators

Power

LAN 1

LAN 2

WLAN

Signal

Operating Frequency

5 GHz

Operation Modes

Access Point Mode (AP mode)

Client Bridge Mode (CB Mode)

WDS: WDS AP, WDS Bridge, WDS Station

Wireless Security

WEP Encryption 64/128/152 bit

WPA/WPA2 Enterprise (WPA-EAP using TKIP or AES)

Hide SSID in Beacons

MAC Address Filtering, Up to 32 MACs per SSID

Wireless STA (Client) Connected List

SSH Tunnel

Client Isolation

Temperature Range

Operating: 32º F~104º F (0º C~40º C)

Storage: -22º F~176º F (-40º C~80º C)

Humidity (non-condensing)

Operating: 90% or less

Storage: 90% or less

Dimensions & Weights

Weight: 0.65 lbs. (0.29 kg)

Width: 3.93” (100 mm)

Length: 7.20” (185 mm)

Height” 1.08” (27 mm)

Package Contents

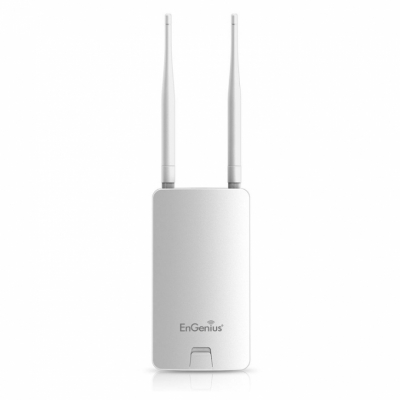

ENS500EXT-AC Outdoor Access Point

Pole-Mounting Brackets

Wall-Mount Screw Set

(2) 5 GHz 5 dBi SMA Antennas

Power Cord

Quick Installation Guide
