Model

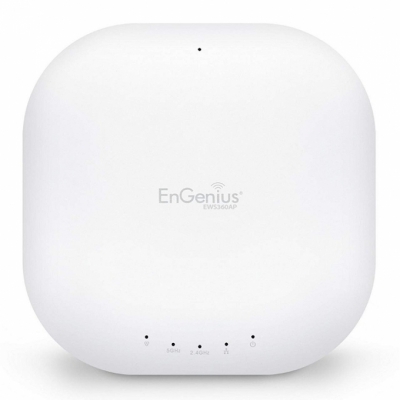

EWS360AP

Standards

IEEE 802.11b/g/n on 2.4 GHz

IEEE 802.11a/n/ac on 5 GHz

IEEE 802.3at

IEEE 802.1r

IEEE 802.1k

IEEE 802.11x

Antennas

Internal Omni-Directional Antennas

5 dBi on 2.4 GHz & 5 GHz

Memory Capacity

Memory: 128 MB

Flash Memory 16 MB

Physical Interface

1 x RJ45 10/100/1000 Mbps — PoE Capable

- 802.3at PoE Input (EWS360AP)

- 802.3af PoE Input ( EWS355AP)

1 x Reset Button

1 x Power Connector

1 x Kensington Lock Slot

Power Source

Power Supply: 100 to 240 VDC ± 10%, 50/60 Hz (depends on different countries)

Active Ethernet (Power-over-Ethernet, IEEE 802.3at/af)

12VDC/2A Power Adapter

LED Indicators

1 x Power

1 x WLAN (Wireless Connection)

1 x LAN

1 x 2.4 GHz

1 x 5 GHz

Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes

Access Point, Mesh

Wireless Security

WPA2 Personal (WPA-PSK using AES)

WPA2 Enterprise (WPA-EAP using AES)

802.1X RADIUS Authenticator: MD5/TLS/TTLS, PEAP

SSID Broadcast Enable/Disable

MAC Address Filtering, Up to 50 Entries

L2 Isolation

Temperature Range

Operating: 32º F~104º F (0º C~40º C)

Storage: -22º F~176º F (-40º C~80º C)

Humidity (non-condensing)

Operating: 90% or less

Storage: 90% or less

Dimensions & Weights

Weight: 0.80 lbs. (362.8 g)

Length: 6.5” (165.1 mm)

Width: 6.5” (165.1 mm)

Height: 1.64” (41.6 mm)

Package Contents

T-Rail Mounting Kits

Ceiling and Wall Mount Screw Kits

Mounting Brackets

Quick Installation Guide

RJ45 Ethernet Cable

Adapter DC 12v
